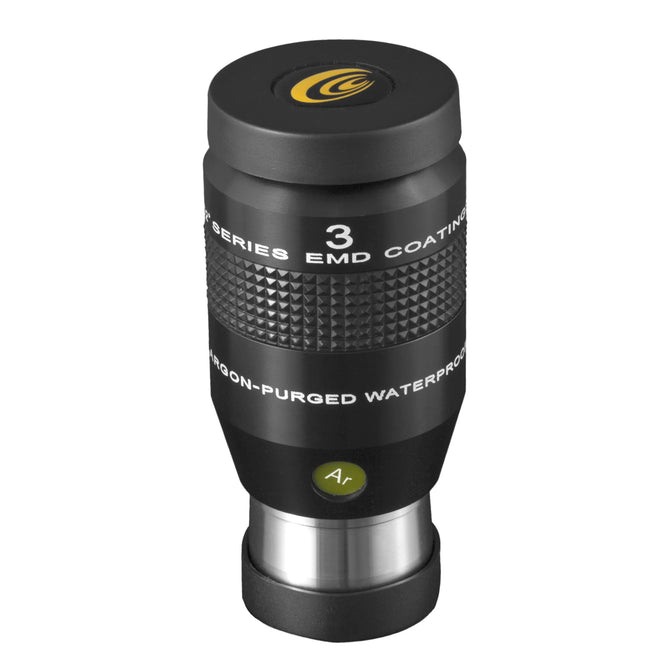

Explore Scientific 52° 3mm Eyepiece 1.25"

A new focal length joins the Explore Scientific line of inert gas-purged Waterproof Eyepieces with the 3mm 52° Series Eyepiece. A logical companion for the “grab-and-go” ED80mm f/6 Air-Spaced Triplet, this eyepiece produces 160X which will perform very well with good seeing conditions. On the ED152 at f/8, 405X is achieved without the use of a Focal Extender or Barlow for those nights of near perfect seeing, with a very comfortable 15mm of eye relief.

Designed for high-power on-axis observations, the Explore Scientific 3mm 52° Series Waterproof Eyepiece is fully EMD (Enhanced Multi-Layer Deposition) Coated with edge blackened lenses providing the contrast required for serious high-power observing of planets, close-paired double stars, and bright compact deep sky objects. With an apparent field of view of 52 degrees, these eyepieces offer incredible value.

Specifications

Item Number: EPWP5203–01
Focal Length: 3mm
Length: 90.9mm
Width; 43mm
Weight: 204.1 grams; 7.2 oz.
Barrel Size/Type: 1.25" O.D. / Double Taper
Eye Relief: 15mm
Field Stop Diameter: 2.7mm
Coatings: EMD (Enhanced Multi-Layer Deposition) on all lens-to-air surfaces
Lens Elements/ Groups: 6 Elements in 3 Groups; Edge Blackened
Filter Thread: Fits Standard 1.25-inch Dia. Thread in Filters (1.125-inches x 42 TPI)
Waterproof: O-Ring Sealed Argon Gas Purged; Tested Under 1 Meter of Water for 30 Minutes
Eyecup: Removable Flip-Down Style Soft Silicone Rubber
Lens Caps: Slide-on Top and Bottom
Materials: Optical Glass; Aluminum; Steel; Silicone Rubber
Markings: Laser Engraved: Focal Length; Series; Serial Number; Brand
