$299.00

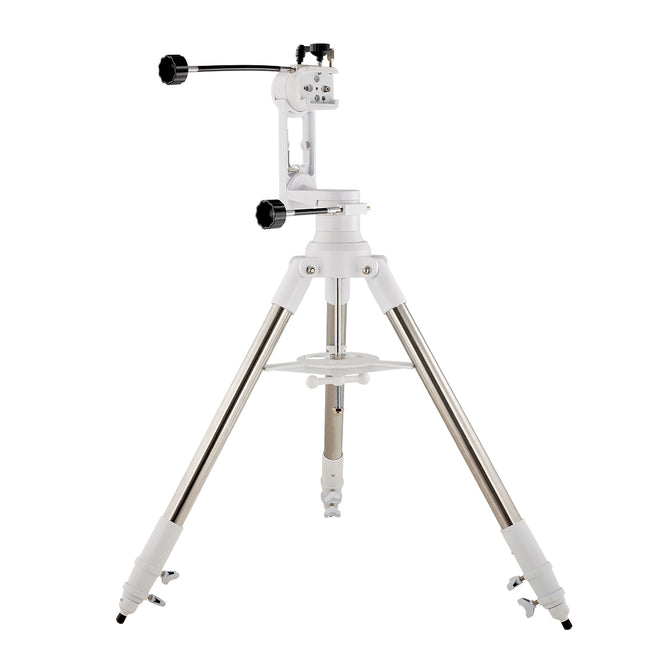

This is a light-to-medium-duty alt-azimuth mount and tripod designed to quickly and easily accept small to medium sized telescopes, such as the Celestron Mak 90, 5" and 6" models and other larger cassegrain telescopes, refractors and lightweight, fast Newtonians will also match up nicely with the mount. As long as your telescope does not exceed 8kgs (18 pounds) and has a Vixen-Style Universal Dovetail bar for mounting the telescope to the mount head, you are good to go.

The mount head is made of powder-coated aluminum and there are worm gears on both axes. The adjustable angle head can be tilted forward or back at a 45° angle to allow more clearance for your telescope so you can point it straight up for viewing at the zenith.

Slow-motion control cables are attached on the vertical and horizontal axes, and are easy to turn during the night, even with gloves on, due to the over-sized knurled knobs that are attached to the end of each cable. They can be attached to either side of each axis to accommodate right or left-handed users, or different types of telescopes (e.g. refractors vs. Newtonian reflectors) for ease of adjustment.

The stainless steel tripod that comes standard with the mount has adjustable legs and a wide foot print of 42 inches, which makes the tripod more stable. A spreader bar locks against the inside of the legs to secure the tripod even further, and keep vibrations to a minimum.



Specifications & Dimensions:

Tripod fully collapsed no mount head: 75cm; 29.5"
Tripod fully collapsed with head: 107cm; 42"
Tripod open, retracted legs no mount head: 64cm; 25"
Tripod open, retracted legs with the mount head: 98cm; 38.5" at highest point, 91cm; 36" to the center of the mounting bracket
Tripod open, legs fully extended no mount head: 107cm;42"
Tripod open, legs fully extended with the mount head: 141cm; 55.5" at highest point, 135cm; 53" to the center of the mounting bracket
Mount head dimensions: 36cm X 18cm X 10cm; 14" x 7" x 4"
Foot print: 107cm; 42"
Weight tripod base: 5.0kg; 11lb
Weight mount head: 3.0kg; 6.6lb
Total weight: 7.6kg; 16.7lb
