ZWO AM5 Harmonic Drive Mount

Sold out - more on the way!
Original price $3,699.00 - Original price $3,699.00
Original price $3,699.00
$3,699.00
$3,699.00 - $3,699.00
Current price $3,699.00

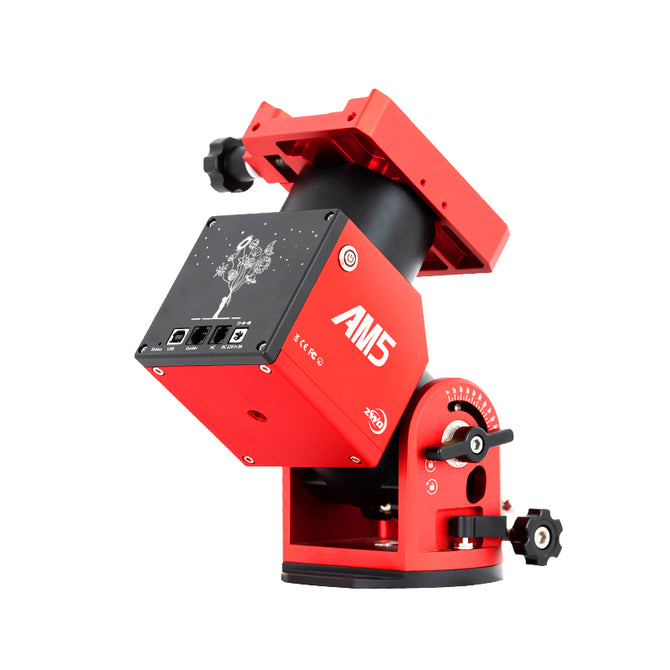

ZWO AM5 Harmonic Drive Hybrid AZ/EQ Mount

Add the TC40 tripod here

The ZWO AM5 is an all-new, ultra-portable telescope mount from the astrophotography experts at ZWO! Featuring cutting-edge harmonic drive technology, this mount has the extraordinary ability to carry up to four times its own weight with high guiding accuracy (0.5 - 0.8" arcseconds) and very low periodic error. The mount head weighs just 5 kg (11 lbs) and can carry 13 kg (28 lbs) without any counterweights, and can even carry up to 20 kg (44 lbs) with optional counterweights. This means you can carry up to an 11" SCT and some 130mm refractors - all without any counterweights! Compared to traditional gear or belt-driven mounts in its payload capacity class, the ZWO AM5 weighs around half of the competition, and that's without the added weight of counterweights. This makes it an extremely portable mount, and it can easily fit in a luggage bag for air travel.

The ZWO AM5 is a hybrid mount, meaning it can operate in both equatorial and alt-azimuth modes. Designed with astrophotography in mind, this mount is made to accurately track the night sky with little periodic error for deep sky astrophotography or planetary imaging. The AM5 also has the ability to operate in alt-azimuth mode, which allows for simple up-down-left-right operation - perfect for visual observing. Its latitude range spans the full 0 to 90 degrees latitude, meaning you can use this mount anywhere in the world, including near the equator! Combining everything mentioned above, this makes the ZWO AM5 one of the most versatile mounts available on the market today.

In case that weren't enough, the ZWO AM5 also features some extra bells & whistles that are nice to have for the modern astronomer and astrophotographer. The mount is WiFi compatible, which allows you to connect your smartphone or tablet to see best targets for tonight, control the GoTo function, and more. ZWO also optimized the AM5 to seamlessly work with the ASIAIR, meaning you can control your entire imaging rig directly from your smartphone or tablet. If you prefer a more traditional hand controller, the AM5 comes with a fully wireless rocker-style hand controller.

PE Curve of each mount individually measured                                                                                                                                                                                                                                                ZWO measures each mount and equip it with the exclusive PE curve before it leaves the factory. The Xaxis represent drive angle. Yaxis represents periodic errors. The periodic error is stably controlled within±20 arcseconds.



Highlights

Load Capacity: 13kg (no CW)  20kg (with optional CW) - Mount head weights only 5.5kg
- Optimised for use with ASIAIR platform: control your entire imaging wirelessly through the smartphone app

- Dual EQ/AZ mount
high guiding accuracy (0.5 - 0.8" arcseconds)
No counterweights required!
- ASCOM/INDI compatible (LX200 settings)

What’s in the box
AM5 mount body
Dovetail
Rocker Hand controller
Hand controller cable
